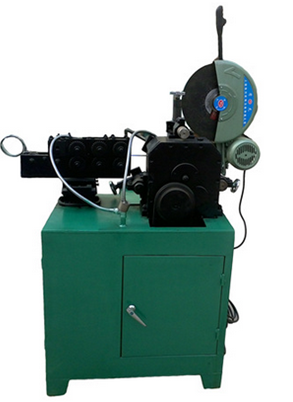

Corrugated Pipe Machine JHK-110

Corrugated Pipe Machine JHK-110

Product Description

The structure and principle of: rolling spiral corrugated pipe machine, winding machine,

mainly composed of auxiliary device, consisting of accessories. Reel machine consists of

a guide device, pressure lubricating device, a corrugated tube center part, thimble device,

folding device, knurling device, transmission system, lubrication and cooling system,

operating system, cutting machine. The auxiliary device is provided with a steel plate bracket,

a spiral corrugated pipe bracket, a spot welder, etc.. Accessories include spindle, disk,

spiral guide sleeve, core, gear, etc..

Rolled steel strip, after loading the steel strip on the steel plate bracket. The strip through

the guide lubrication device, pressure ripple device around the mandrel, driven by the main shaft

has formed a good strip after folding, knurling, pressing the seam forming process, spiral corrugated

tube well by spiral corrugated pipe support, according to the required length of continuous forward rotation.

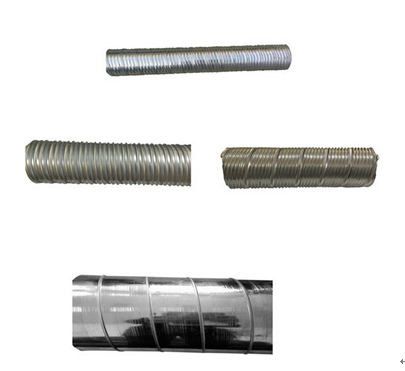

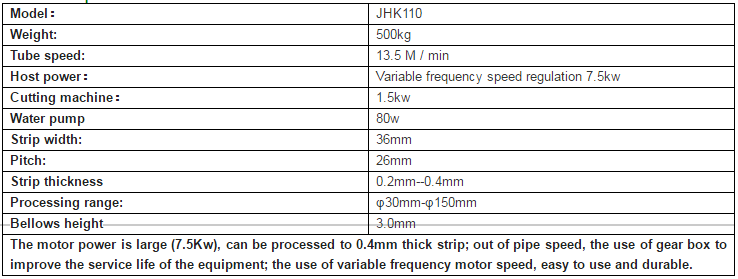

Technical parameter
