Corrugated Pipe Machine JHK-250

Availability:
Quantity:
  • JH & OEM

Corrugated Pipe Machine JH-250



Product Description


The structure and principle of: rolling spiral corrugated pipe machine,

winding machine, mainly composed of auxiliary device, consisting of accessories.

Reel machine consists of a guide device, pressure lubricating device, a corrugated

tube center part, thimble device, folding device, knurling device, transmission system,

lubrication and cooling system, operating system, cutting machine. The auxiliary device

is provided with a steel plate bracket, a spiral corrugated pipe bracket, a spot welder, etc..

Accessories include spindle, disk, spiral guide sleeve, core, gear, etc..

Rolled steel strip, after loading the steel strip on the steel plate bracket.

The strip through the guide lubrication device, pressure ripple device around the mandrel,

driven by the main shaft has formed a good strip after folding, knurling, pressing the seam

forming process, spiral corrugated tube well by spiral corrugated pipe support, according to

the required length of continuous forward rotation.

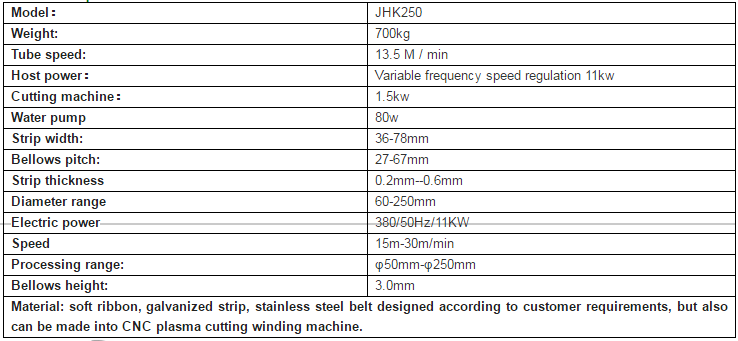

Technical parameter


1560409287(1)
